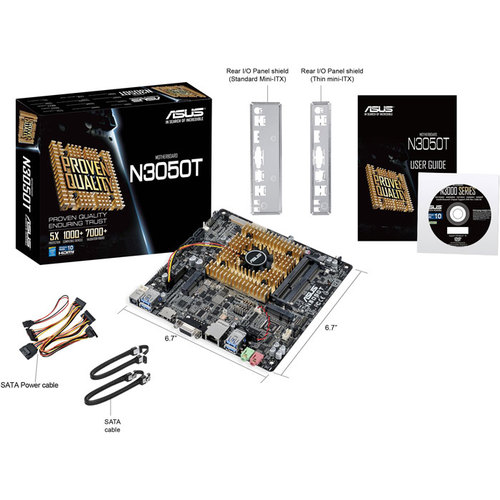

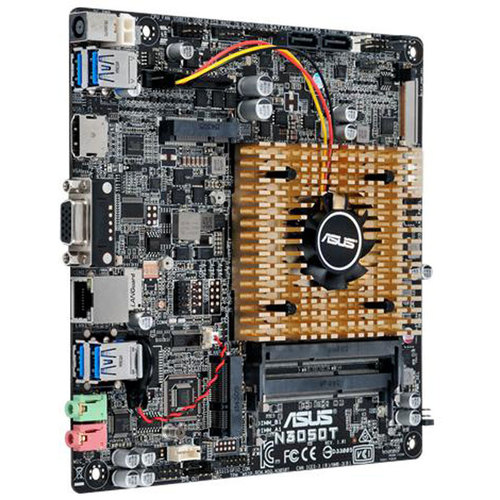

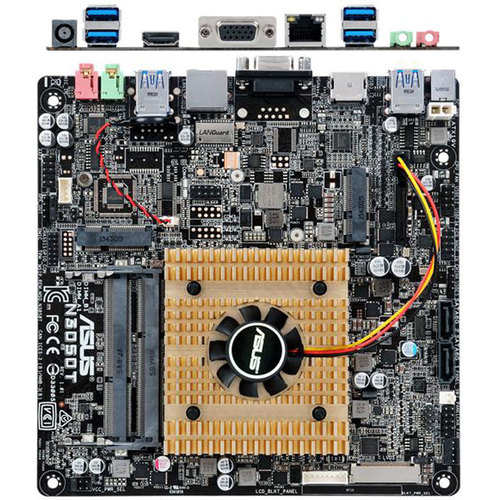

Motherboard ASUS Intel Celeron N3050 DDR3 DIMM ( N3050T ) mini-ITX Ret
| Form factor | mini-ITX |
|---|---|
| Integrated Sound Card | Yes |
| Quantity of channels | 7.1 (Realtek ALC887) |
| Built-in processor | Yes |
| Memory | DDR3 SO-DIMM |
| Maximum capacity (GB) | 8 |
| SLI support | No |
| Bluetooth | No |
| Memory architecture | Two-channel |
| SATA 3 (up to 6 Gbit/s) | 2 |
| D-Sub (VGA) | 1 |
| CrossFire support | No |
| USB A 2.0 (connectors) | 3 |
| The main pin connector | 2 DC |
| Article number | 239684 |
| Видео разъёмы | |
| VGA (D-Sub) | 1 |
| DVI | No |
| DisplayPort | Mini No |
| HDMI | 1 |
| Конструктив | |
| Backlight | No |
| Габариты and вес | |
| Form factor | mini-ITX |
| Технологии and особенности | |
| SLI support | No |
| CrossFire support | No |
| Intel Optane support | No |
| Intel CNVi support | No |
| Clear CMOS jumper | No |
| Display | No |
| Dual BIOS | No |
| Memory | |
| Memory | DDR3 SO-DIMM |
| Maximum capacity (GB) | 8 |
| Memory architecture | Two-channel |
| Quantity of slots | 2 |
| Maximum memory frequency (MHz) | 1600 |
| Сетевые подключения | |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet Controller | 10/100/1000 Mbps |
| Внутренние контроллеры дисков | |
| SATA 3 (up to 6 Gbit/s) | 2 |
| RAID support | No |
| M.2 (form factor) | No |
| M.2 (interface) | No |
| mSATA | 1 |
| M.2 (dongle) | No |
| U.2 | No |
| SATA Express | No |
| Внутренние разъёмы and соединения | |
| USB A 2.0 (connectors) | 3 |
| USB A 3.2 Gen1 (connectors) | No |
| USB A 3.2 Gen2 (connectors) | No |
| USB C Gen1 (connectors) | No |
| S/PDIF | No |
| COM | 1 |
| LPT | No |
| Case fan connectors | 1 |
| pumps | No |
| Fan/pump connectors | No |
| Connector for additional. fan to radiator (OPT) | No |
| M.2 fan connectors | No |
| Temperature sensor connectors | No |
| Connectors for LED strip | No |
| Power | |
| The main pin connector | 2 DC |
| Разъёмы на задней панели | |
| PS/2 | No |
| USB A 2.0 | No |
| USB A 3.2 Gen1 | 4 |
| USB A 3.2 Gen2 | No |
| USB C 3.2 Gen1 | No |
| Quantity of audio ports 3.5mm | 2 |
| LAN network port (RJ45) | 1 |
| LPT port | No |
| COM port | No |
| Thunderbolt | No |
| Слоты расширения | |
| mini-PCI-E | 1 |
| Processor | |
| Socket | FCBGA1170 |
| Built-in processor | Yes |
| Sound | |
| Integrated Sound Card | Yes |
| Quantity of channels | 7.1 (Realtek ALC887) |
